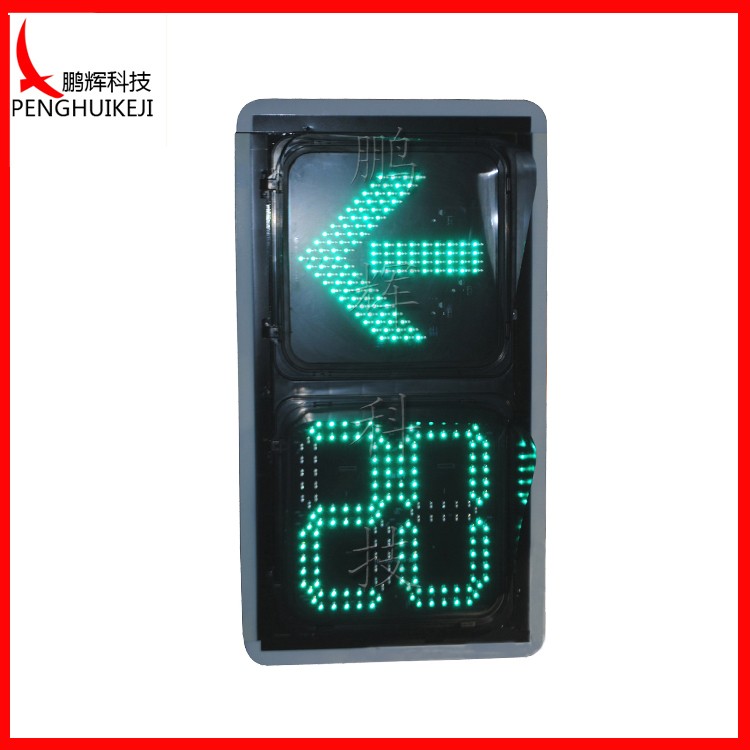

Motor vehicle signal lamp
The product description
Red, yellow and green colors left arrow lights with screen display, for red, green countdown signals.
Product features
The indicators in line with the law of the People's Republic of China GB14887-2011 standard for road traffic lights.
Imported ultra bright LED the wick, four elements uniform chromaticity, Angle is big, visible distance, long service life.
Adopt silicon rubber seal, dustproof, waterproof, flame retardant, effectively put an end to all kinds of hidden dangers.
And the number
Rules: 300, 400, Φ Φ Φ 500 (choose one)
Lamp shell material: PC, aluminum alloy, die-casting aluminum (choose one)
Installation method: horizontal, vertical loading
Light life: 100000 hours or more
Center wavelength: red 625 nm 625 nm, yellow, green, 505 nm
Resistant temperature: - 40 ℃ ~ + 85 ℃
Working voltage: DC12V / 24 V, AC (220 + / - 20%) V (choose one)
Visual Angle: 30 ° or greater
Visual distance: 500 m or more
Tepid performance: air relative humidity of 5% ~ 95% (without condensate)
Insulation resistance: 10 m Ω >
Wind loading: 145 m/h
Enclosure protection grade: IP53
