Motor vehicle signal lamp
The product description

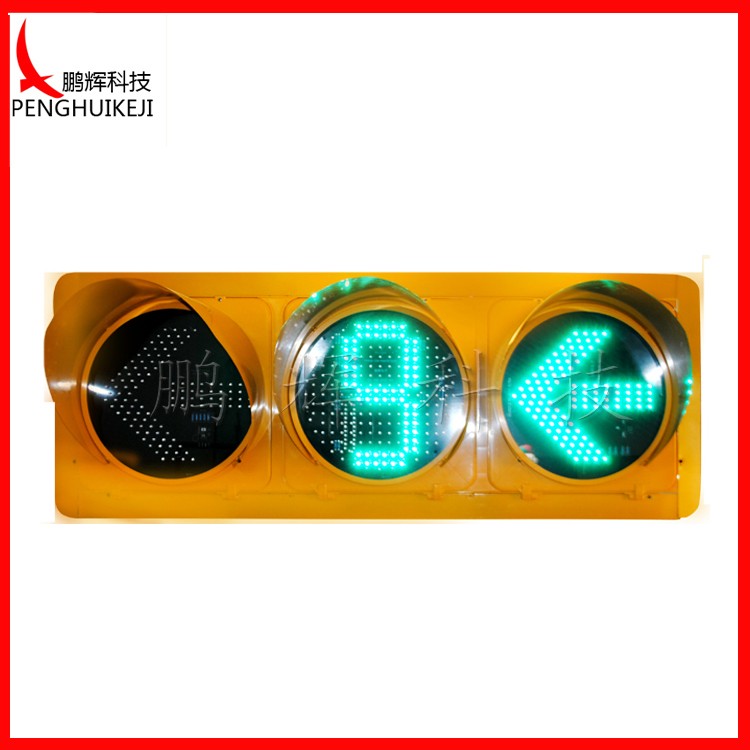

As the red arrow lights, the middle for yellow full screen containing the timer, the timer to"8"Font shows, for the green arrow lights
Product features
The indicators meet the People's Republic of ChinaGB14887-2011Standard for road traffic lights.
Super bright imported four elementsLEDThe wick, uniform chromaticity, Angle is big, visible distance, long service life.
Adopt silicon rubber seal, dustproof, waterproof, flame retardant, effectively put an end to all kinds of hidden dangers.
ginseng The number
gauge G:phi300, phi400, phi500
Lamp shell material:PC, aluminum alloy, die-casting aluminum
Installation method:Horizontal loading, vertical loading
Source of lifeLight:p10Thousands of hours
Center wavelength:red625nm, yellow590nm, green505nm
Resistance to A:- 40℃~ + 85℃
Working voltage:DC12V/24V,AC(220Plus or minus20%)V（You can choose any one of）
Visual Angle:p30°
Visual range:p500m
Warm performance:Air relative humidity5%~95%(no condensate)
Insulation resistance:＞10M omega.
Wind loading:145m/h
Enclosure protection grade:IP53
